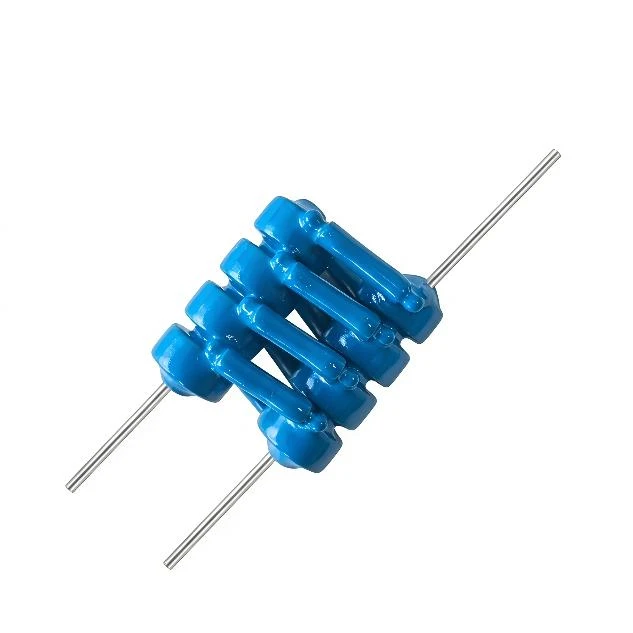

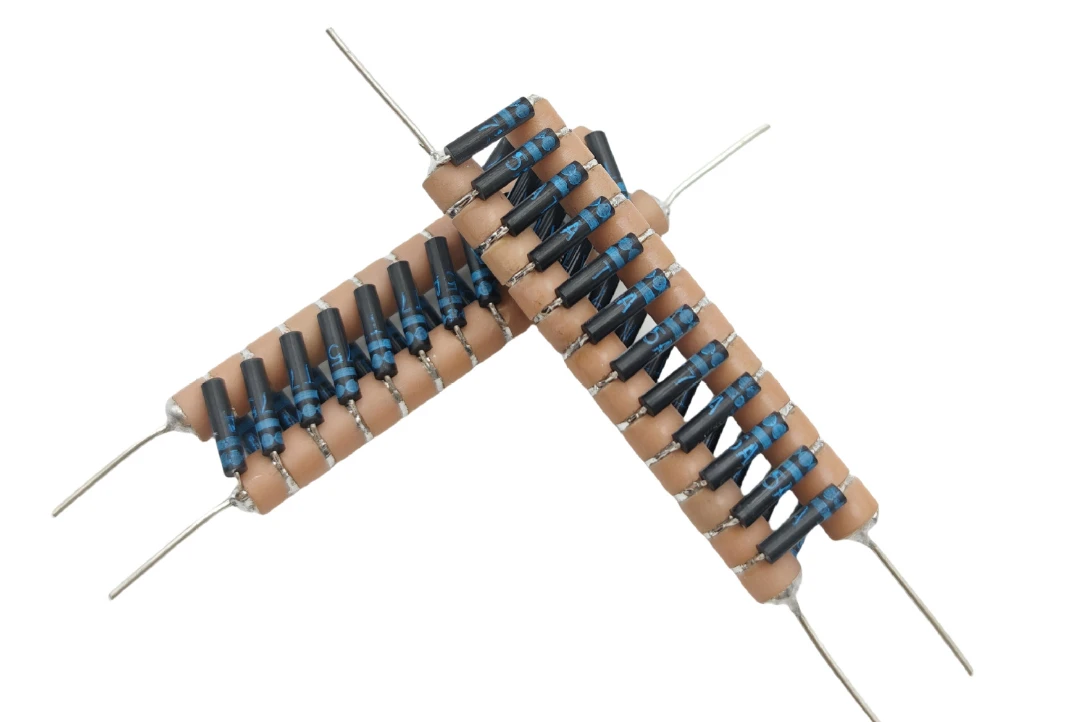

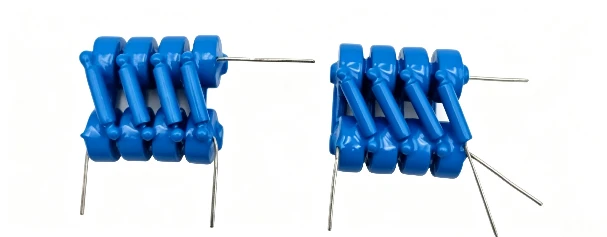

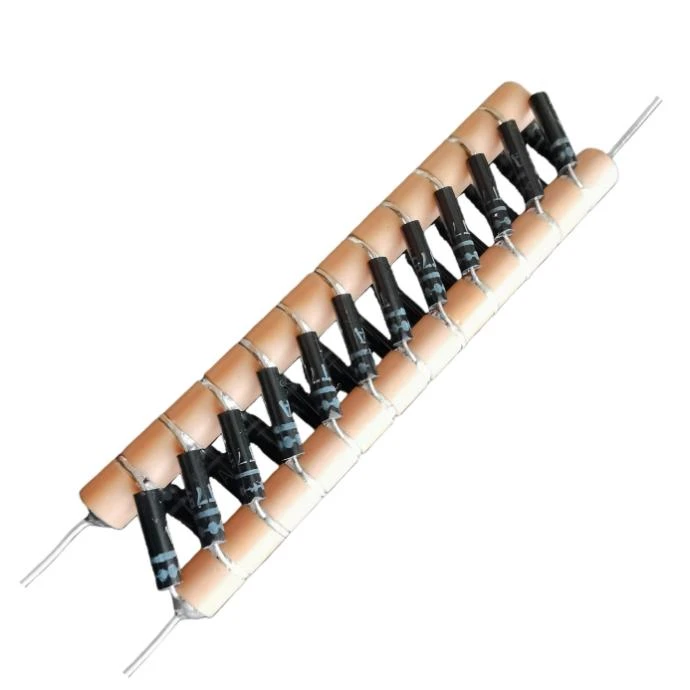

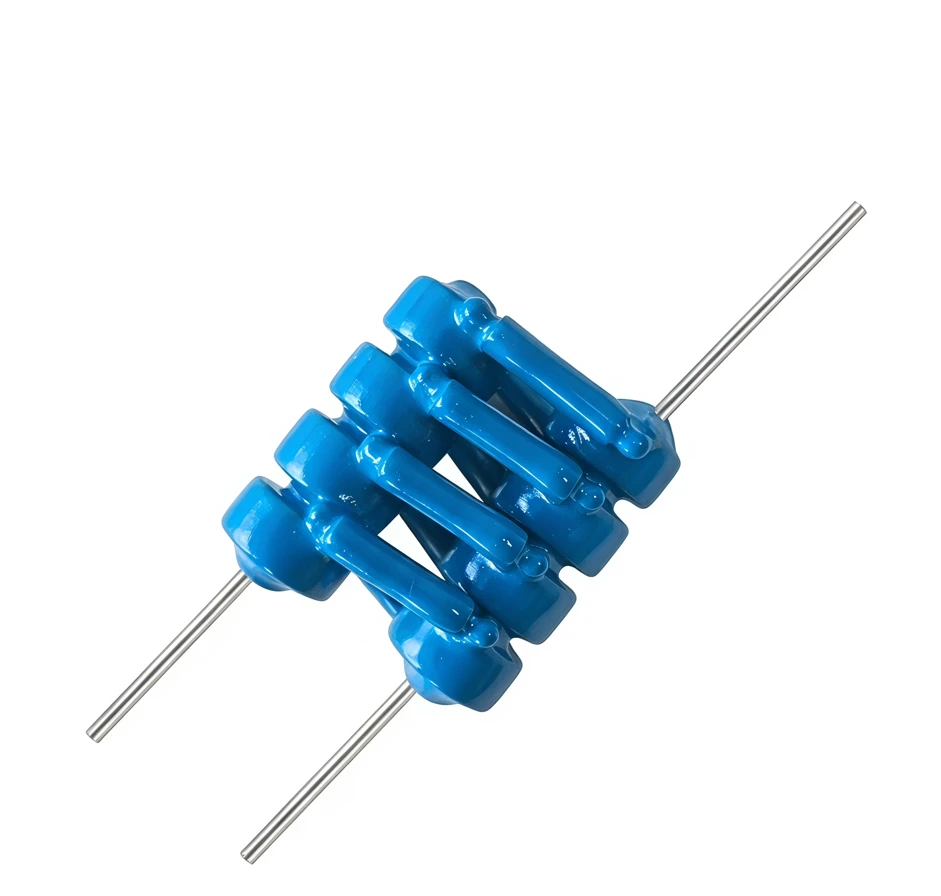

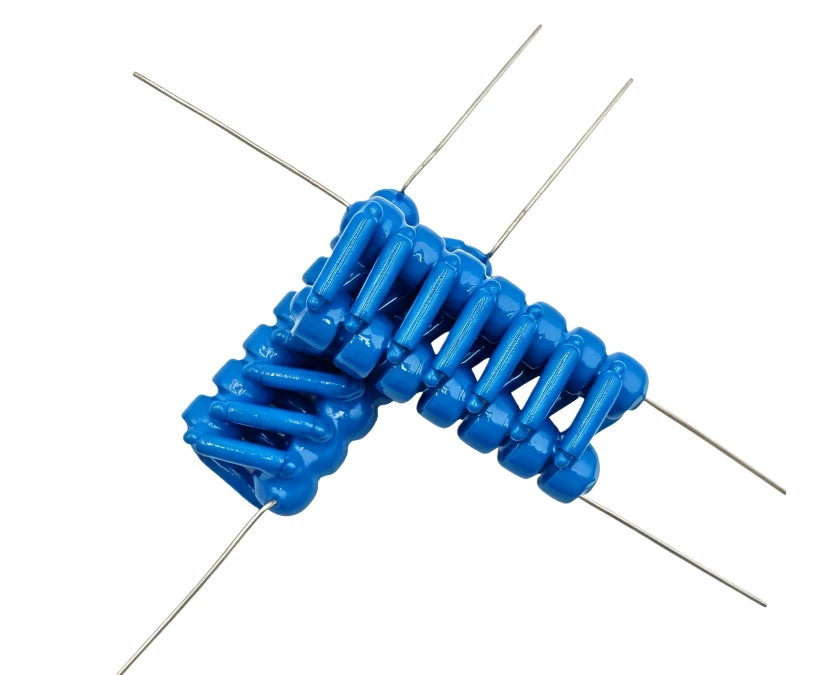

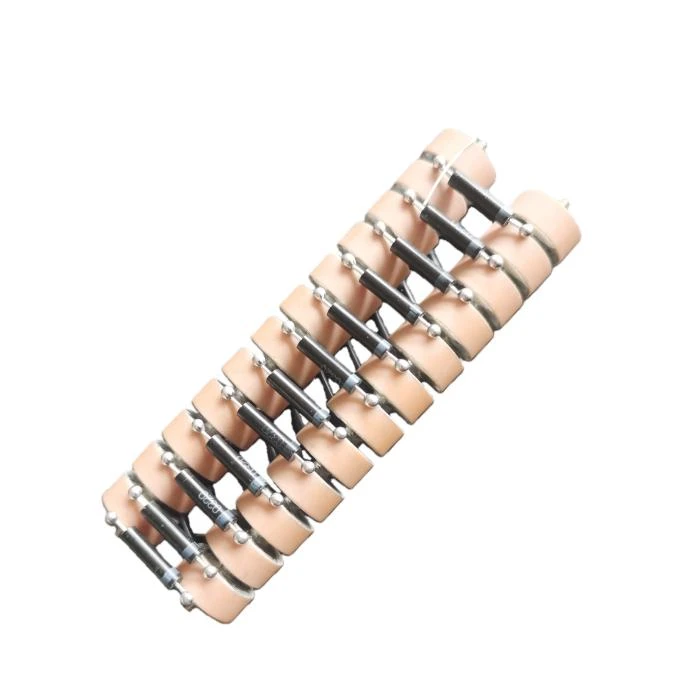

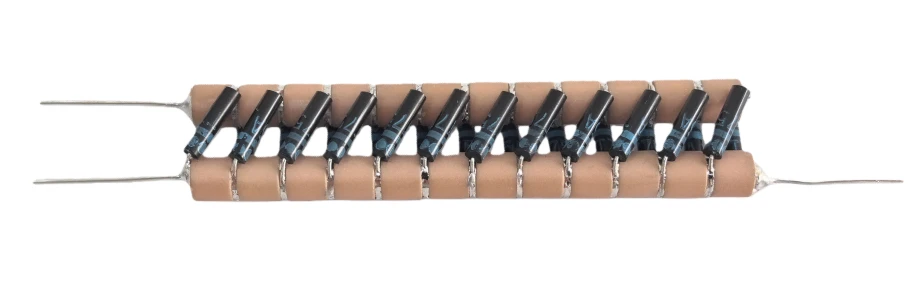

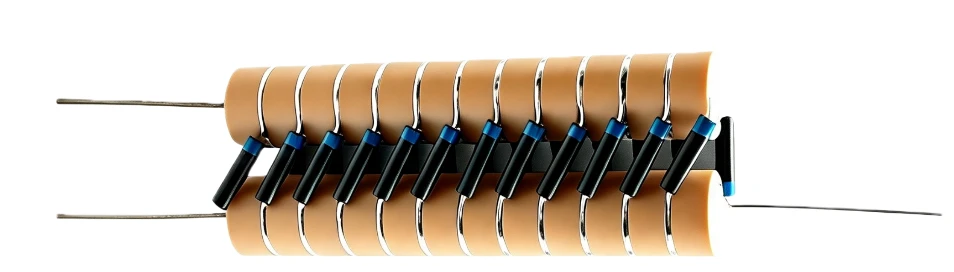

Cockcroft Waltoni kordaja

Ei.

Type

Diood

Mahtuvus

Dielektrilised materjalid

Dielektriline kadu

Isolatsioonitakistus

Katsepinge

Pilt

1

20KV251K+75A

16KV5mA

250 PF

Y5T

<1.0%

>10⁵MΩ

30 KV

2

20KV501K+0320

20KV30mA

500 PF

Y6T

＜0.5%

>10⁵MΩ

30 KV

3

20KV102K+0320

20KV30mA

1000 PF

keraamiline

<0.2%

>10⁵MΩ

30 KV

4

20KV471K+T75A

16KV5mA

470PF

Y5T

<0.5%

>10⁵MΩ

30 KV

5

20KV102K+0530

30KV50mA

1000 PF

keraamiline

<0.2%

>10⁵MΩ

30 KV

6

20KV471K+0320(7 etappi)

20KV30mA

470PF

X7R

<0.5%

>10⁵MΩ

30 KV

7

20KV471K+0320(8 astet)

20KV30mA

470PF

X7R

<0.5%

>10⁵MΩ

30 KV

8

20KV471K+0320(10 astet)

20KV30mA

470PF

Y5T

<0.5%

>10⁵MΩ

30 KV

9

20KV471K+T75A (10 astet)

16KV5mA

470PF

Y5T

<1.0%

>10⁵MΩ

30 KV

10

20KV501K+0320

20KV30mA

500 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

11

20KV681K+0320"

20KV30mA

680PF

Y5T

<0.5%

>10⁵MΩ

30 KV

12

20KV102K+0320

20KV30mA

1000 PF

X7R

<1.0%

>10⁵MΩ

30 KV

13

15KV102K+HVRT250 (12 astet)

25KV30mA

1000 PF

Y5T

<0.5%

>10⁵MΩ

22,5 KV

14

15KV102K+HVRT250 (14 astet)

25KV30mA

1000 PF

Y5T

<0.5%

>10⁵MΩ

22,5 KV

15

20KV331K+75A

16KV5mA

330PF

Y5T

<0.5%

>10⁵MΩ

30 KV

16

20KV251K+75A

16KV5mA

250 PF

Y5T

<0.2%

>10⁵MΩ

30 KV

17

20KV471K+75Vaskterminal

16KV5mA

470PF

X7R

<1.0%

>10⁵MΩ

30 KV

18

20KV271K+75Vaskterminal

16KV5mA

270PF

Y5T

<0.2%

>10⁵MΩ

30 KV

19

20KV511K+75Vaskterminal

16KV5mA

510PF

Y5T

<0.5%

>10⁵MΩ

30 KV

20

20KV221K+75A

16KV5mA

220PF

Y5T

<0.5%

>10⁵MΩ

30 KV

21

20KV331K+75A

16KV5mA

220PF

Y5T

<0.5%

>10⁵MΩ

30 KV

22

20KV221K+75A Double

16KV5mA

330PF

Y5T

<0.5%

>10⁵MΩ

30 KV

23

20KV221K+75Üksik

16KV5mA

220PF

Y5T

<0.5%

>10⁵MΩ

30 KV

24

20KV331K+75A Double

16KV5mA

220PF

Y5T

<0.5%

>10⁵MΩ

30 KV
